CE Volcano - 8 SMT Reflow Oven PID Closed Loop Control 380V 8 Zones

Product Categories
Winson Automation Equipment (Huizhou) Co., Ltd.
Contact Now

CE Volcano - 8 SMT Reflow Oven PID Closed Loop Control 380V 8 Zones

Brand Name : WEC

Model Number : Volcano-8

Certification : CE

Place of Origin : Made in China

MOQ : 1

Payment Terms : T/T

Supply Ability : 5000pcs per year

Delivery Time : 30 work days

Packaging Details : wooden box

After-sales service provided : Engineers available to service machinery overseas

Warranty : 1 Year

Application : SMT PCB Reflow Soldering

Name : SMT Reflow Oven

Type : Reflow Solder

Heating zones : 8 Zones

Contact Now

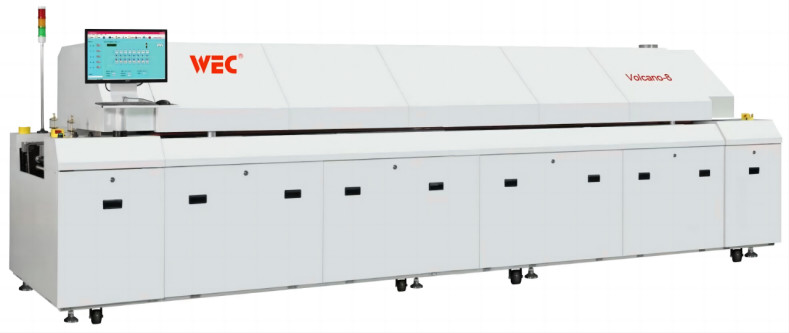

Volcano-8 Reflow Oven

Main Function Of Volcano-8 Reflow Oven:

  • Reflow soldering is a process used in electronics manufacturing to attach surface-mount components to a printed circuit board (PCB). During reflow soldering, solder paste is applied to the PCB, and then the components are placed on top of the paste. The PCB is then heated, causing the solder to melt and flow, creating a bond between the components and the PCB.
  • There are several steps involved in the reflow soldering process. First, the solder paste is applied to the PCB using a stencil or dispensing tool. The components are then placed on top of the paste using automated equipment or by hand. The PCB is then heated in a reflow oven, which raises the temperature of the solder paste to the point where it melts and flows, creating a bond between the components and the PCB.
  • There are several advantages to reflow soldering over other soldering methods. It is a highly automated process, which reduces the potential for human error and increases production efficiency. It also creates a strong and reliable bond between the components and the PCB, which is essential for the long-term reliability of electronic devices.
  • Reflow soldering is widely used in the electronics industry and is an essential part of modern electronics manufacturing

Main Specification Of Volcano-8 Reflow Oven:

Machine size 5800*1350*1510mm.
Heating&Cooling zone upper&lower 8 heating zones,upper&lower 3 cooling zones.
Exhaust air volume 10m3/min×2 channels.
Max pcb width 400mm
Mesh belt width 500mm.
Heating length 3105mm.
Heating time about 30mins.
Temperature Range Room temperature to -300℃.
Temperature control precision ±1℃
Temperature control mode PID closed-loop control + SSR drive
Conveying Direction L→R, R→L
Inlet Height 900±20mm
Fixed Rail Side Front rail Fixed or Rear Rail Fixed.
Cmponent Height Clearance based on the rail: top 25mm,bottom 25mm.
Transpot speed 0-2000mm/min(Inverter + Motor)3 test lines.
Power supply 5 wires and 3 phases,AC 380V 50-60HZ
Total supply start power 56KW,power consumption 8-10KW.
Parameter setting can store a variety of production setting parameters and conditions.
Abnormal alarm ultra-high or ultra-low temperature alarm, sound and light in two ways.
Lubricant refilling automatic manual mode can be switched freely.
