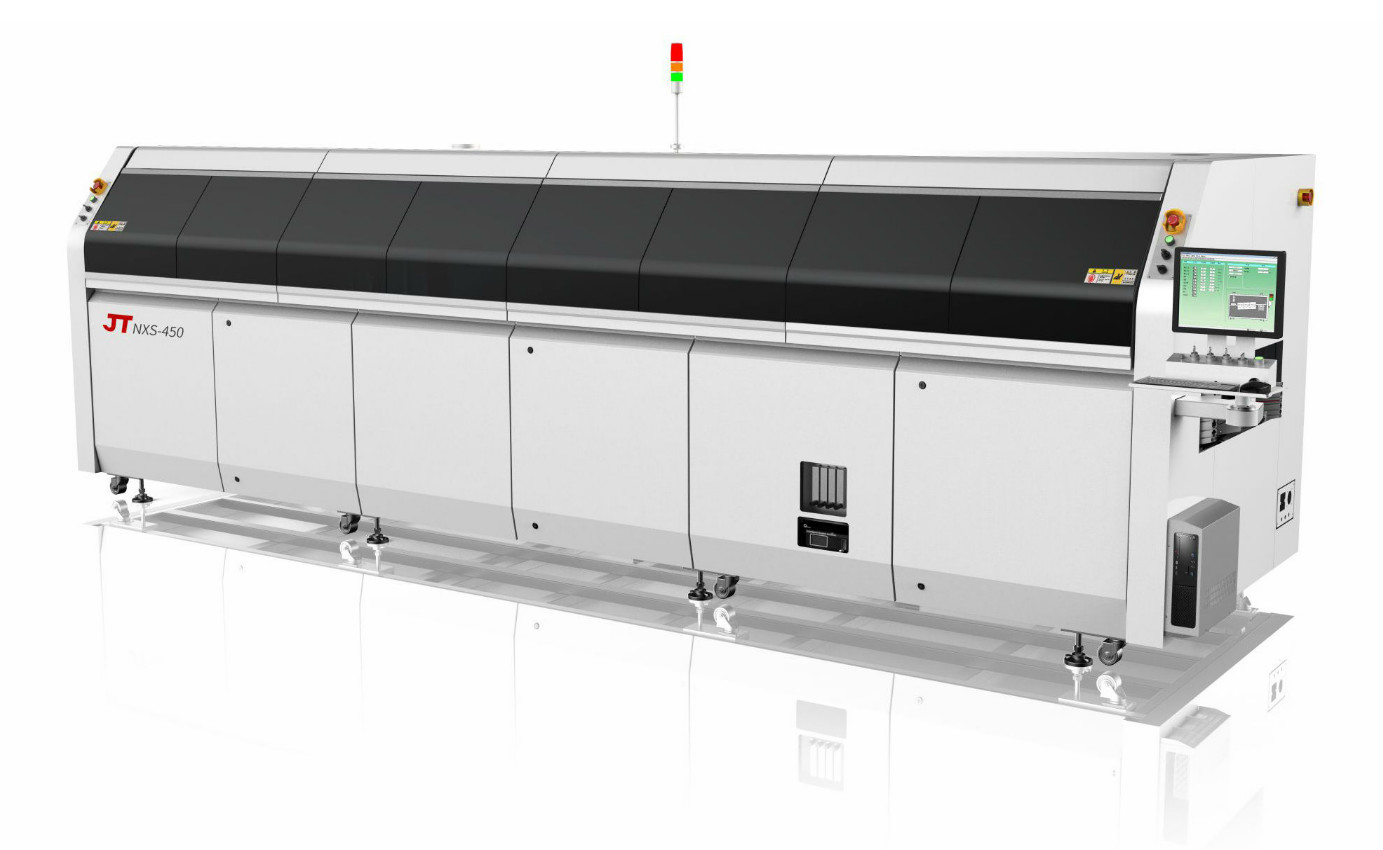

JT NXS-450 Reflow Oven
Product Description:
- Nitrogen Closed-loop Control
A real-time monitoring on nitrogen concentration and PID closed-loop adjusting nitrogen flow to realize the stable PPM value.
- Increase Solder Stability
By nitrogen protecting can improve the wetting of wave infiltration and promote solder penetration rate to make sure the stable quality.
- Reduce Sloder Defect
The tunnel-based entire nitrogen wave soldering can reduce solder defect and improve production efficiency with less oxygen content.
- Save Cost
The equipment maintenance cost could be decreased effectively by a closed preheating environment.
Specification
| Model | NXS-450 |
| Parameters | Dimension(LxWxH) | 5635x1620x1735mm |
| Supply Power(3 phases 5 wires) | 3P5W380V AC,50/60Hz 160A or 3P5W220V AC,50/60Hz 130A |
| Required Lnitial Power | 90KW |
| Required Air Source Power | 0.5~0.8Mpa |
| Total Power | 60KW |
| Operating Power | 10-13KW |
| Control Method | PC+PLC |
| Spray System | Flux Flow | 10-100ml/min |
| Spray Pressure | 0.25MPa-0.4MPa |
| Preheating System | Preheating Method | Hot air/IR for option(module) |
| Speed Adjustment Mode | IR: Ni |
| Quantity | 3 sections (4 sections for option) |
| Length | 1950mm (3 segments); 2250mm (4 sections) |
| Temp. Range | Room temperature - 280 ℃ |
| Temp. Control Mode | PID+SSR |
| Soldering System | Wave Peak Operation Mode | Mechanical pump |
| Power for Heating Tube | 1.5KW*12 |
| PotCapacity | Approx 550KG |
| Ultimate Bearing Temperature | Max: 300 ℃ |
| Ultimate Usage Temperature | Max: 280 ℃ |
| Wave Peak Driven Power | 1/2 HPx2 AC 220V3Φ |
| Height Adjustment Mode | Inverter adjustment |
| Heating Time | 100 min 250℃ |
| Wave Peak Select | Dual-wave: spoiler+flat or spoiler+spoiler |
| Wave Height | 0~15mm |
| PCB Conveyor System | Conveying Speed | 0~1800mm/ min |
| Width Range of PCB | 50-450mm |
| Length Range of PCB | 120-600mm |
| Height of PCB Component | Top: 150mm Bottom: 25mm |
| Conveyor Height | 750±20mm |
| Angle of Rail | 5.5 degree fixed |
| Motor Rotation Mode | Sectional transimmission/control |
| Conveyor Motor Power | 90W*3 3P 220V AC |
| | | 40KG |
| Conveyor Mode | fragment conveyor: chain- fingers (V+L/full V/ full L) - chain |
| Conveyor Motor Speed Adjustment | Inverter adjustment |
| Gas Parameters | | 30m³/h 1000ppm |
| Nitrogen Source Pressure | 0.5-0.8MPa |
| Nitrogen Source Oxygen Content | ≤10PPM |
| No.of Nitrogen Flowmeter | 7 |
| Others | Exhaust Fan | AC380V 750W |
| Diameter of Exhaust Duct | Φ200mm |
