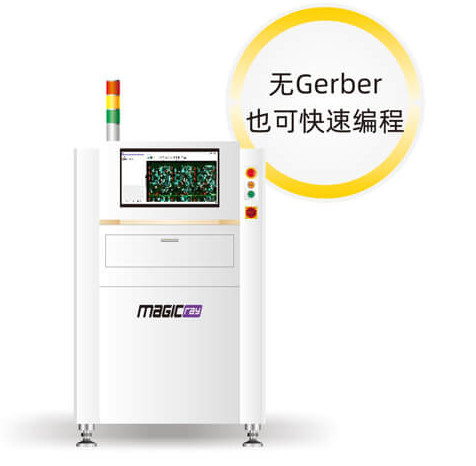

MAGICray SPI VSP-3000
Product feature:
Intelligent zero-reference technology makes the measured height data more accurate
It can effectively detect the defects that are difficult to detect in the industry such as tin wire short circuit, broken tin and tip drawing.
Can effectively meet the inspection needs of different color PCBs
Light board zero compensation, more accurate measurement of solder paste height and volume
Abundant SPC inspection data analysis helps to improve and enhance process quality
The three-point snap function can quickly locate the root cause of the defect.
Equipment parameter:
| Model No. | VSP3000 | VSP3000D | VSP3000XL |
| Image system | Camera | 4MP/12MP industrial camera |
| | Resolution | 4MP camera:20um 15um 12MP camera 15um 12um 10um |
| | FOV | 30*30mm(4MP,15um) 60*45mm(12mp,15um) |
| | height resolution | 0.37um |
| | light source | 3-color ring programmable LED light source (RGB) |
| | Height measurement method | Structured grating |
| | exercise system | AC serve |
| | base | marble |
| | rail width adjusted | automatic |
| | rail type | belt |
| | input transport direction | left to right, right to left |
| | rail height | 900±25mm |
| | machine size | 935*1360*1570mm |
| | inspection size | dual rail:50*60~510*320mm single rail:50*60~510*580mm |
| | edge width | 3mm |
| | Max measure height | 600um |
| | Inspection item | tip, average height, offset |
| | Inspection speed | 400-450ms/FOV |
FAQ
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
Q: Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
